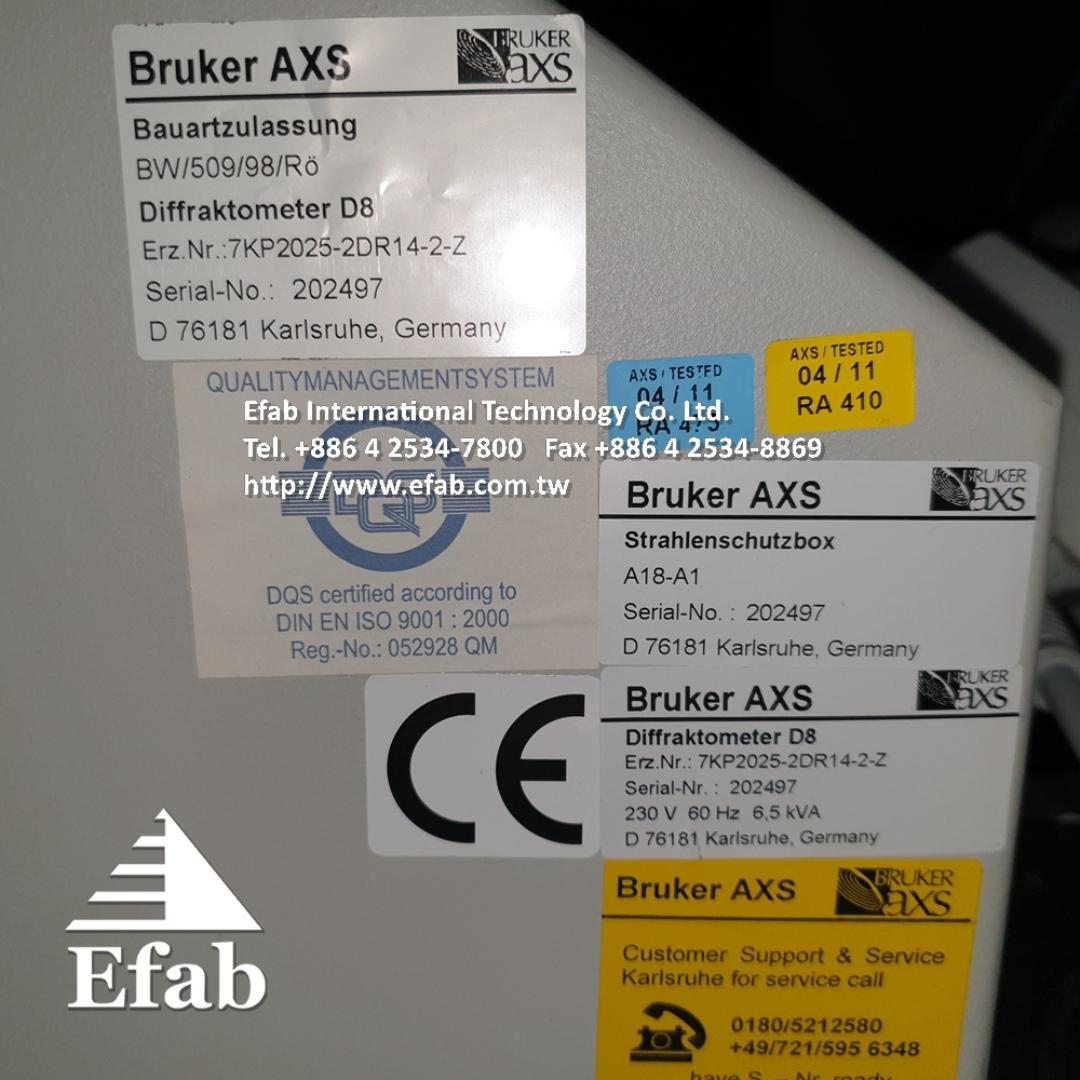

D8 DISCOVER DIFFRACTION SYSTEM (Horizontal)
- theta/2theta, long tracks, horizontal, 258mm

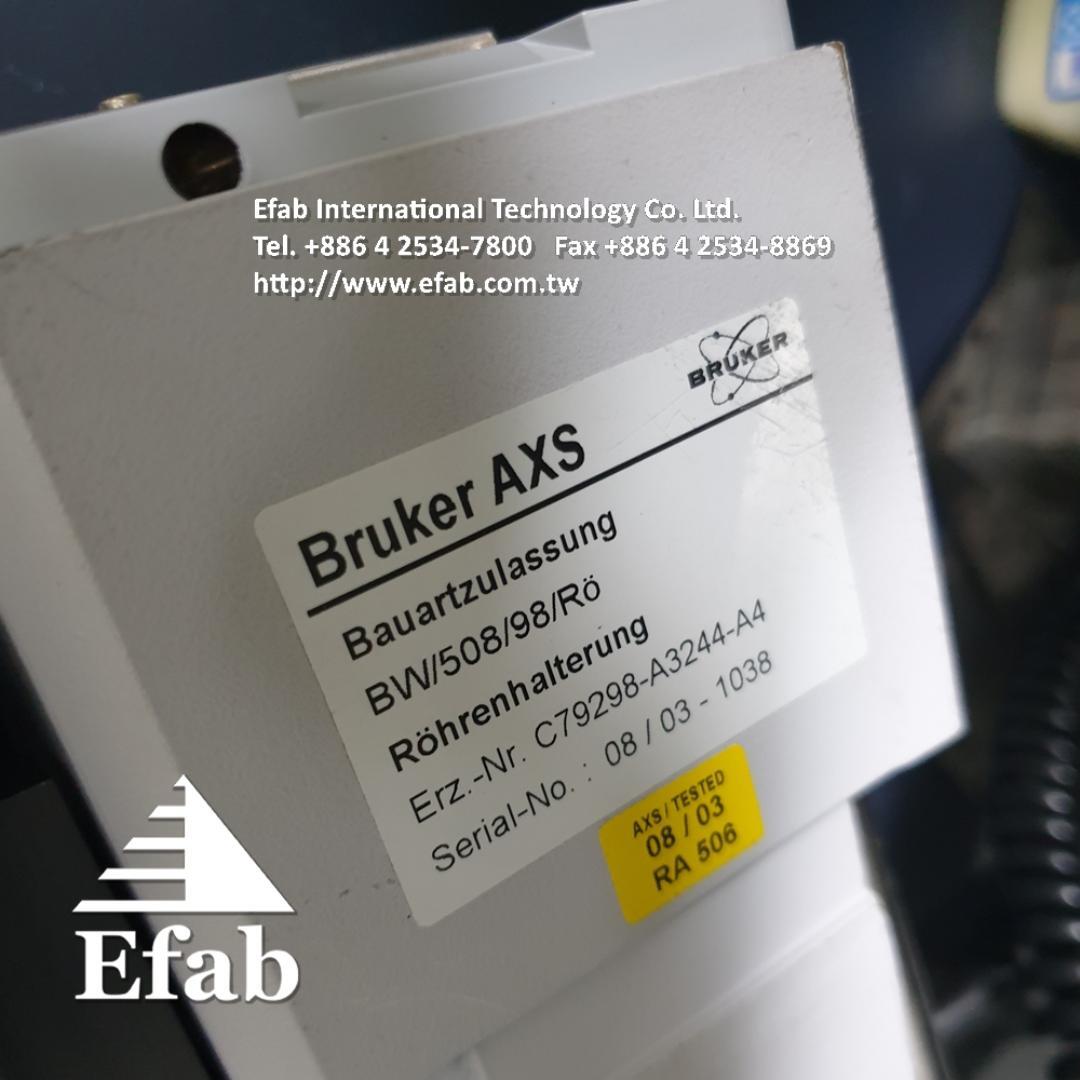

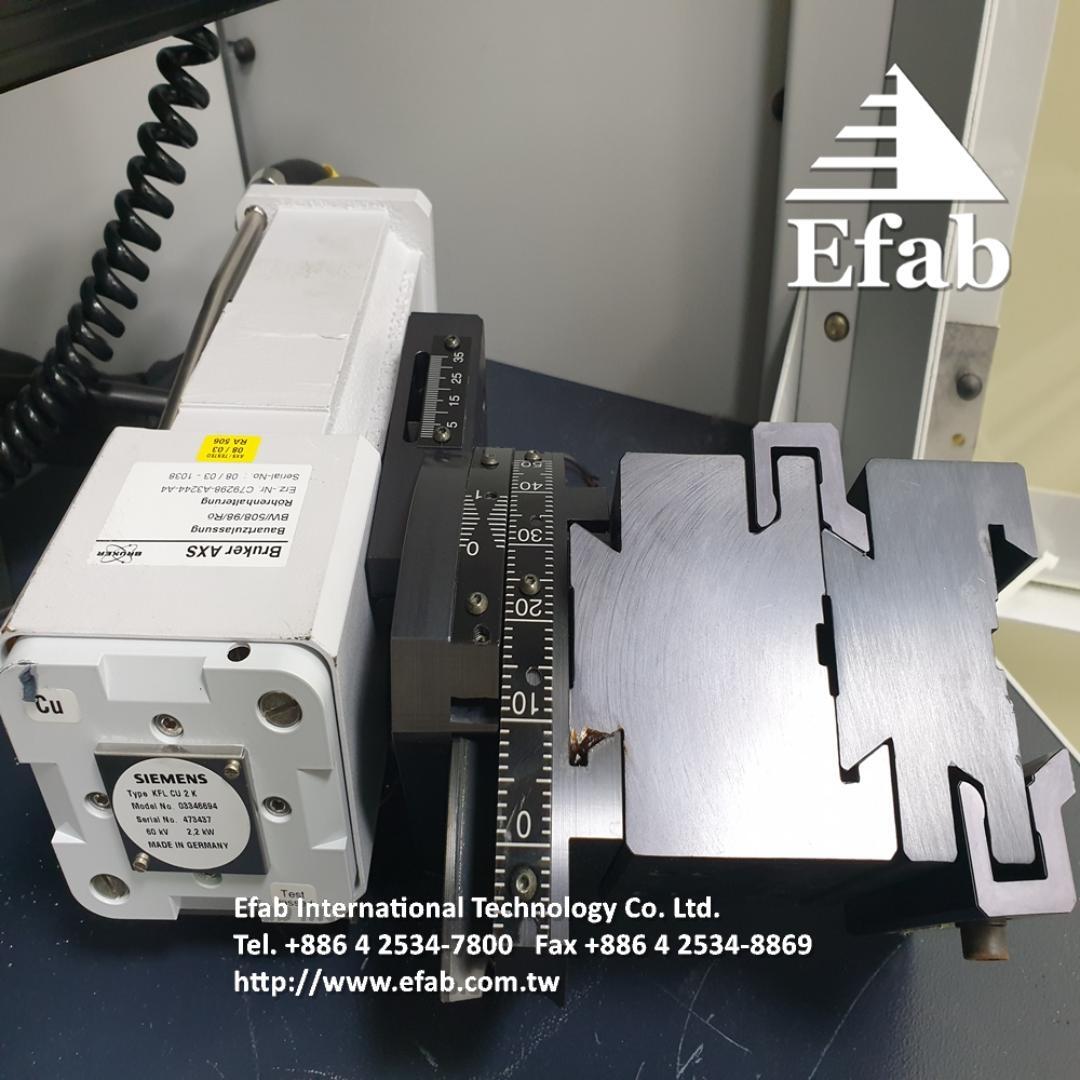

- tube mount, 2 DOF-ROOT, 258mm, 1 window
- with enclosure
- with cabinet, with 3 kW generator, without internal cooling unit
- 230 V, 60 Hz

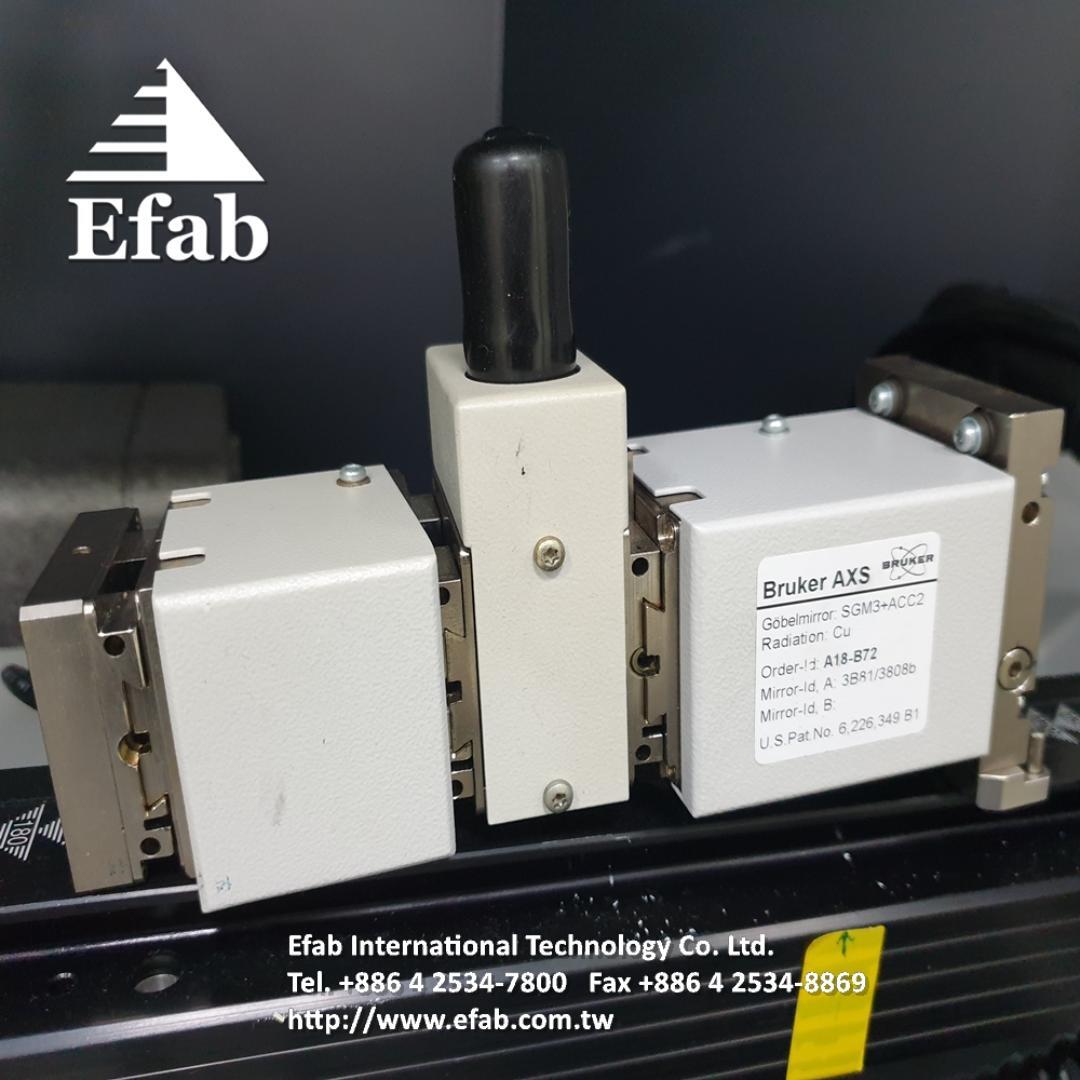

- Sealed Göbel Mirror asymmetric channel cut monochromator module (GM-ACC)
- Rotary absorber for D8, 4 positions, primary beam path mounting at Göbel Mirror housing
- Set of plug in slits
- Centric Eulerian cradle for D8 Horizontal, Chi, Phi, X, Y, and Z motorized, complete with cables and alignment tools
- 5" vacuum chuck, rotating, complete
- Pathfinder dual beam path analyzer module, 214 mm height
- Dynamic Scintillation detector, NaI

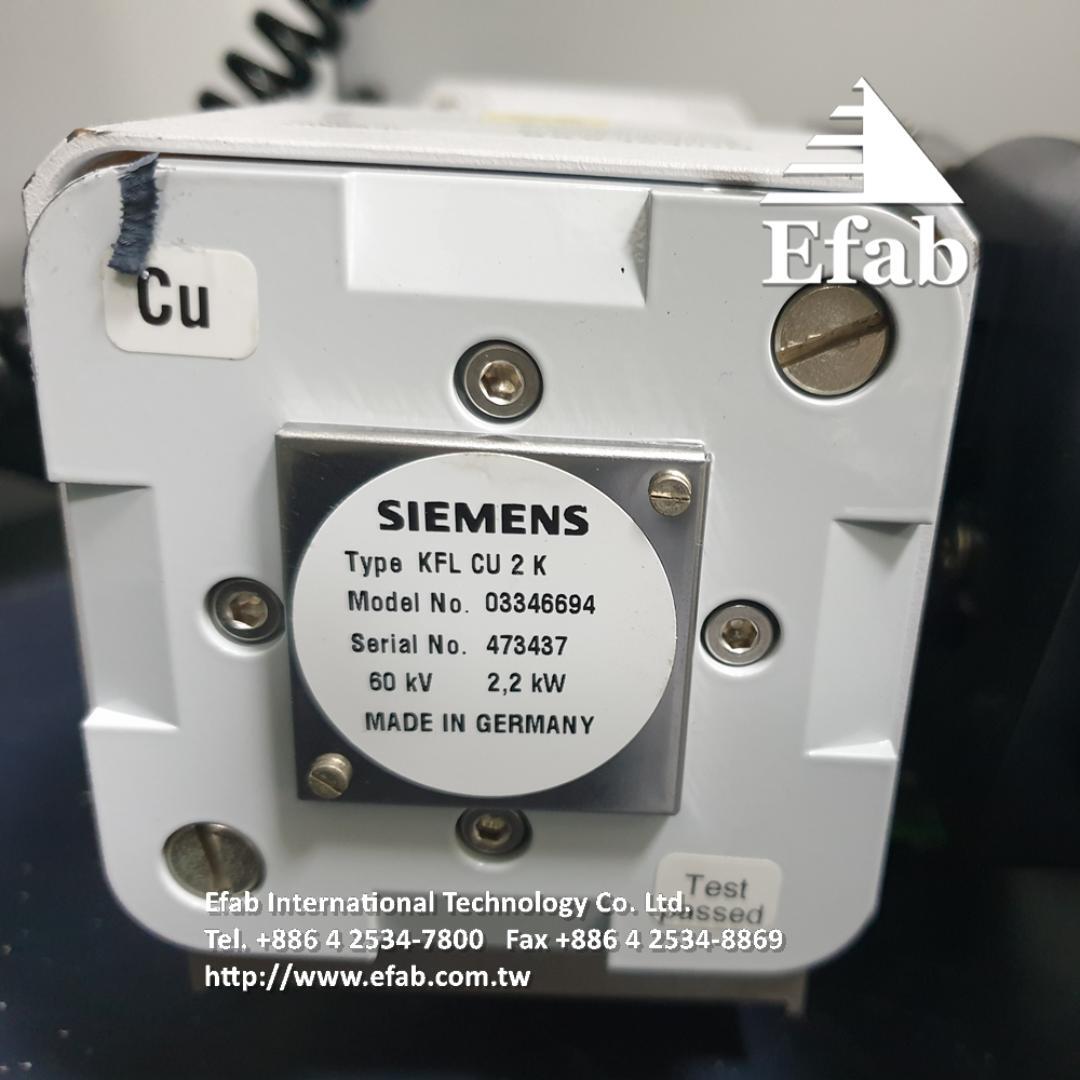

- Ceramic tube KFL CU 2K, long fine, 2.2kW Cu
- 4-axes motor driver board
More information available on request.
