  • Listing ID# 1210009
  • Manufacturer: Bruker AXS
  • Model: D8 Discover ,SOLD
  • Vintage: 2007
  • Status: Operational

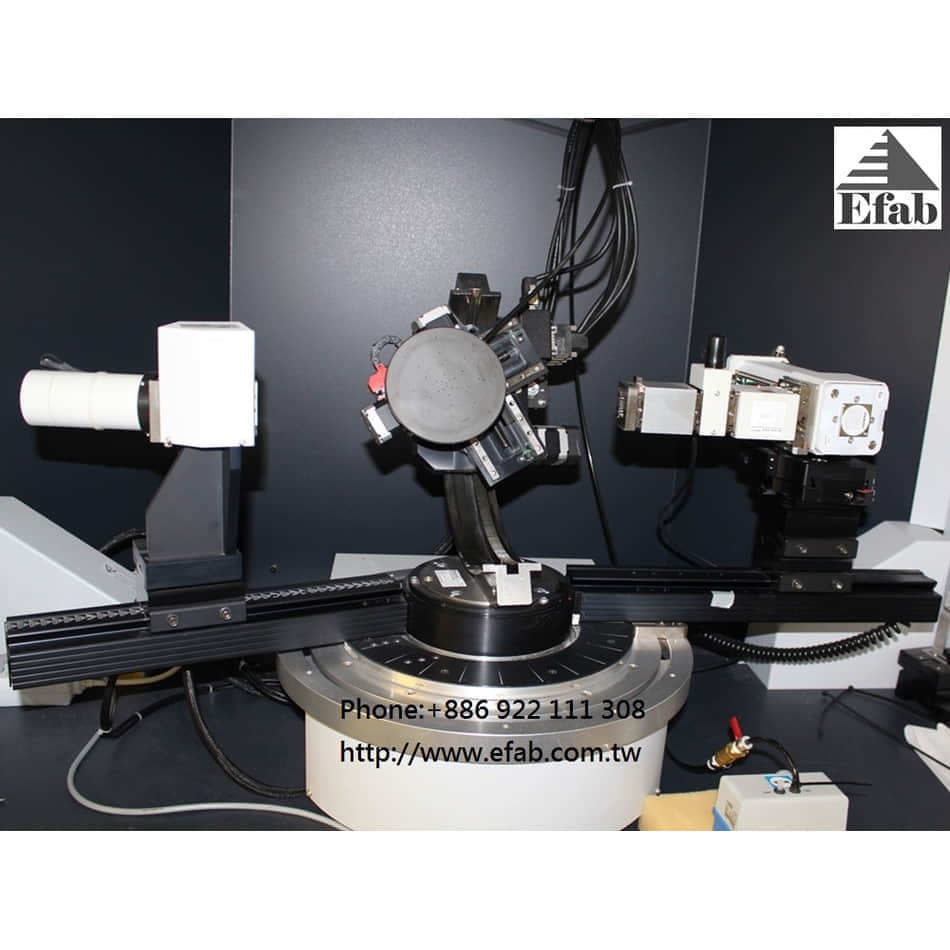

D8 DISCOVER DIFFRACTION SYSTEM (Horizontal)

- theta/2theta, long tracks, horizontal, 258mm

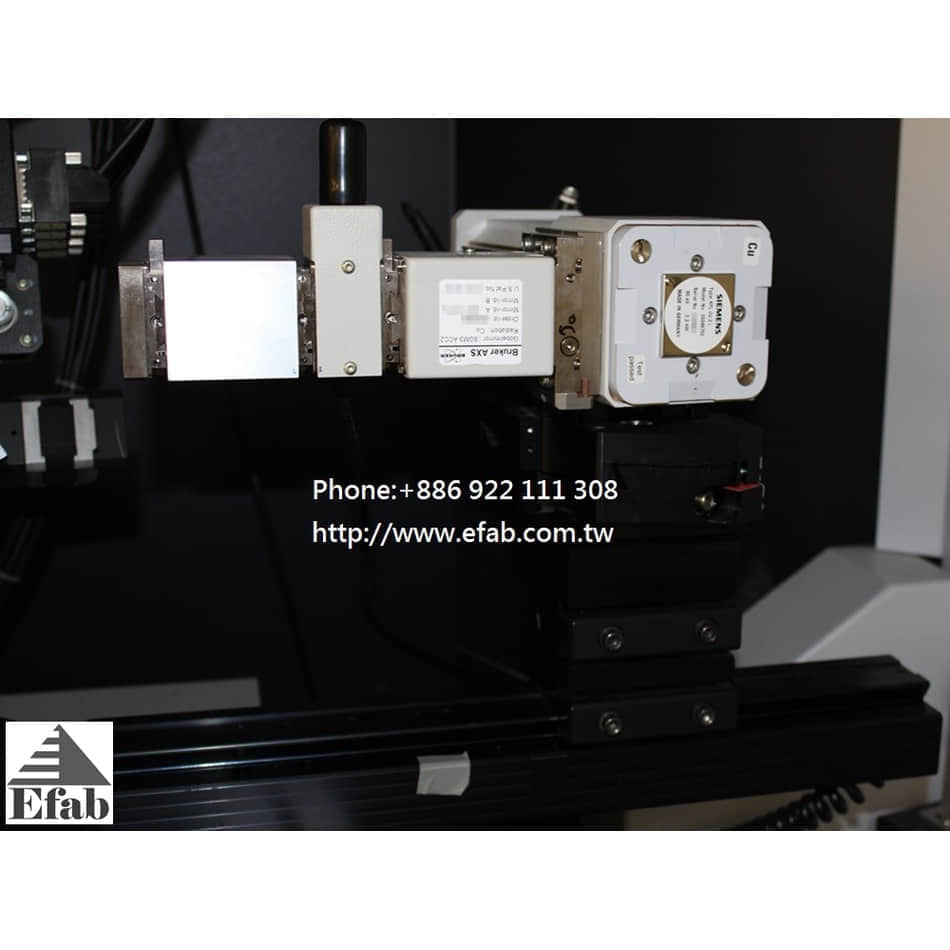

- tube mount, 2 DOF-ROOT, 258mm, 1 window

- with enclosure

- with cabinet, with 3 kW generator, without internal cooling unit

- 230 V, 60 Hz

- Sealed Göbel Mirror asymmetric channel cut monochromator module (GM-ACC)

- Rotary absorber for D8, 4 positions, primary beam path mounting at Göbel Mirror housing

- Set of plug in slits

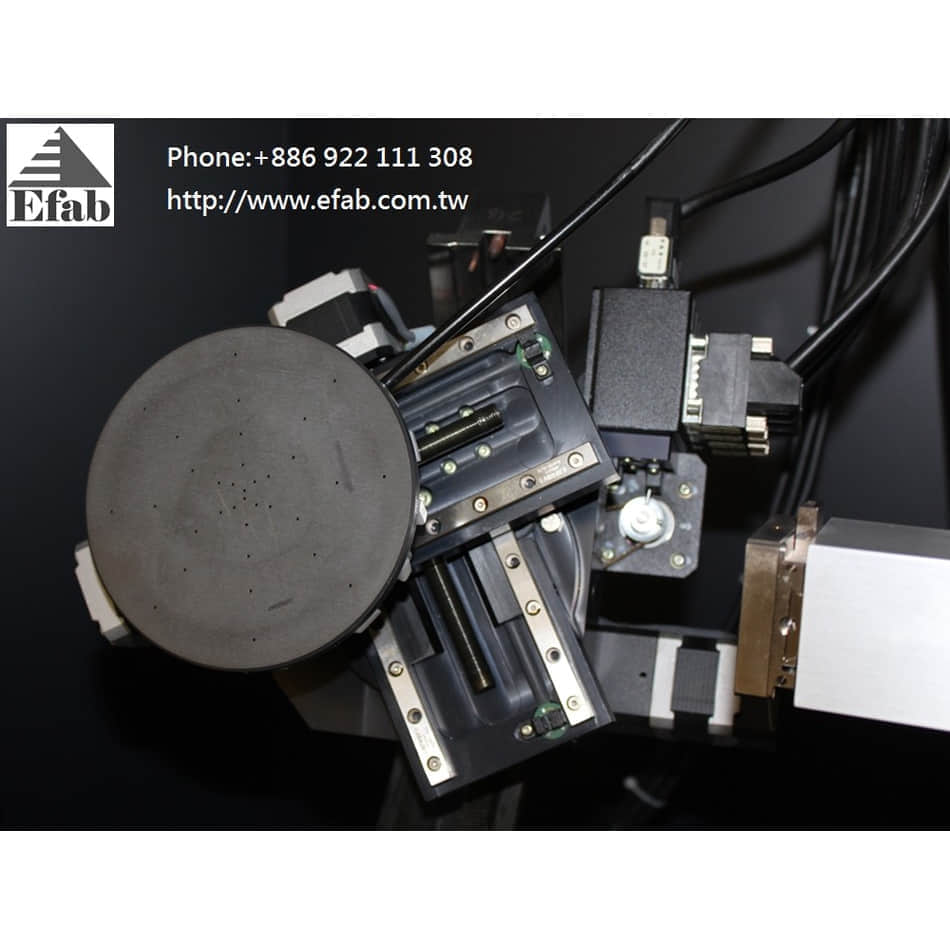

- Centric Eulerian cradle for D8 Horizontal, Chi, Phi, X, Y, and Z motorized, complete with cables and alignment tools

- 5" vacuum chuck, rotating, complete

- Pathfinder dual beam path analyzer module, 214 mm height

- Dynamic Scintillation detector, NaI

- Ceramic tube KFL CU 2K, long fine, 2.2kW Cu

- 4-axes motor driver board

- PC, Keyboard, Mouse, Windows XP

- Software DIFFRACplus Measurement Center for D8 diffractometer

- Software DIFFRACplus Evaluation Package

- Software DIFFRACplus LEPTOS



More information available on request.
